Presets

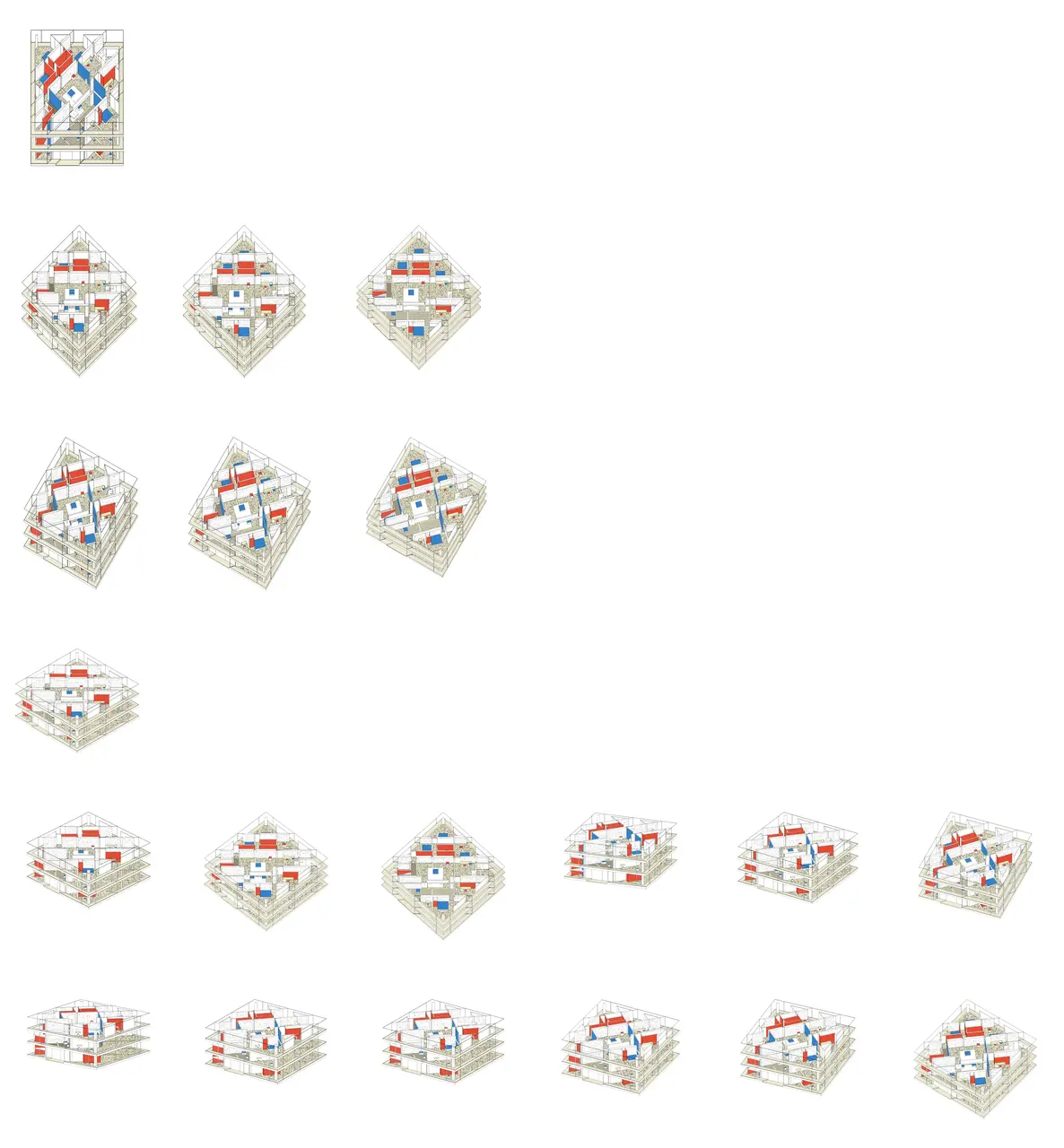

A showcase of all the presets applied to the same object: John Hejduk, Diamond House B, Projection, 1963-1967

Oblique

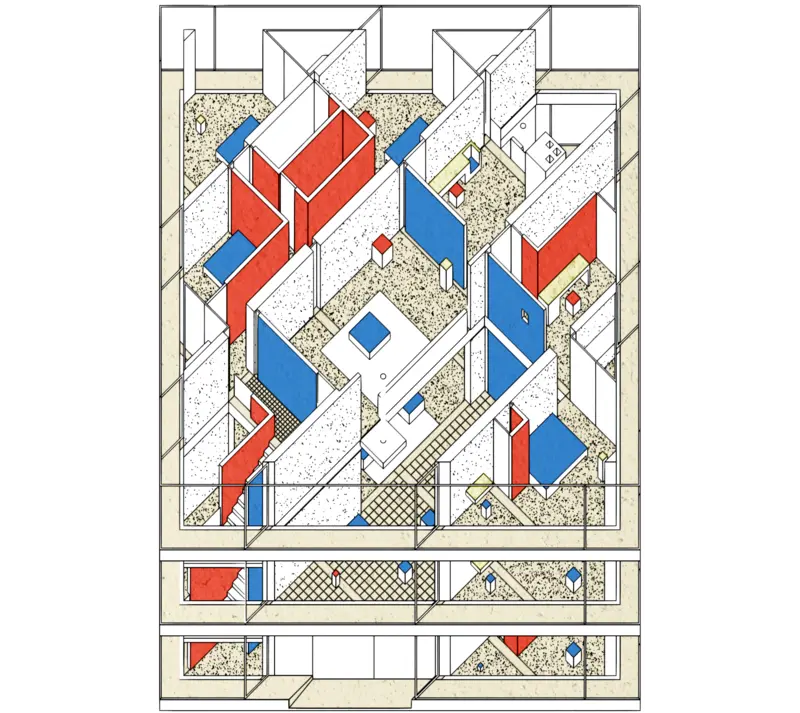

Hejduk

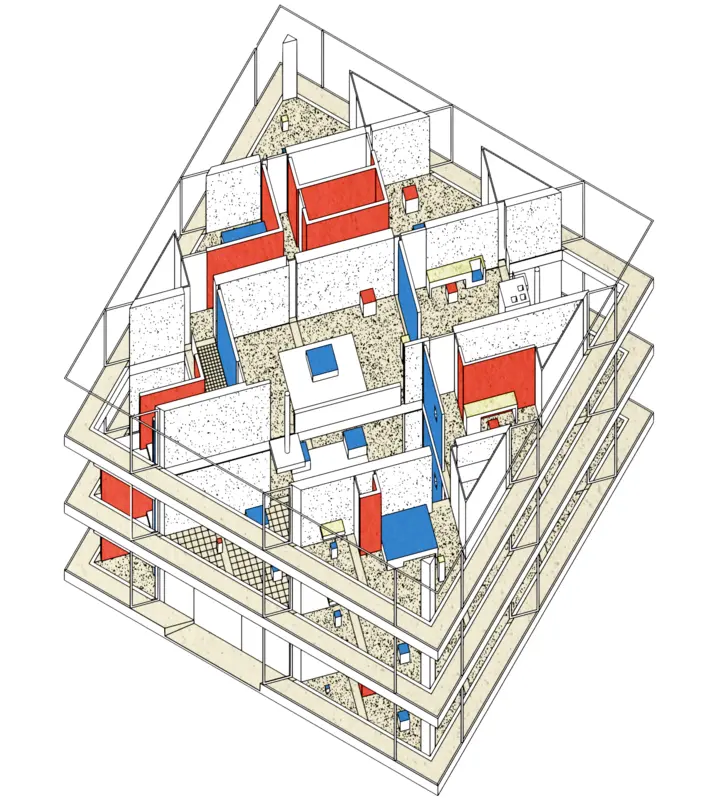

Military 1:1

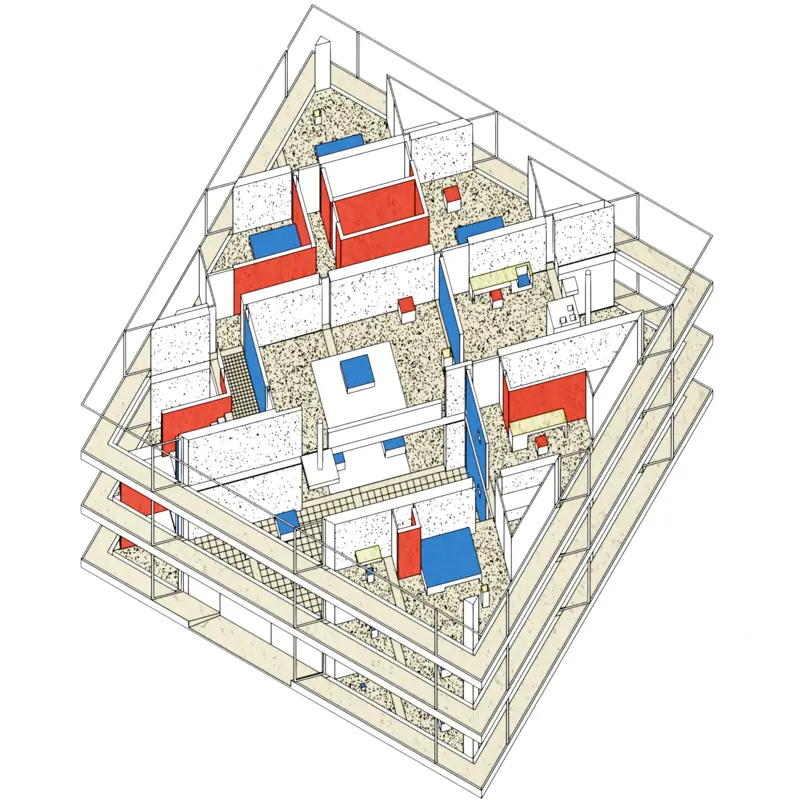

Military 3:4

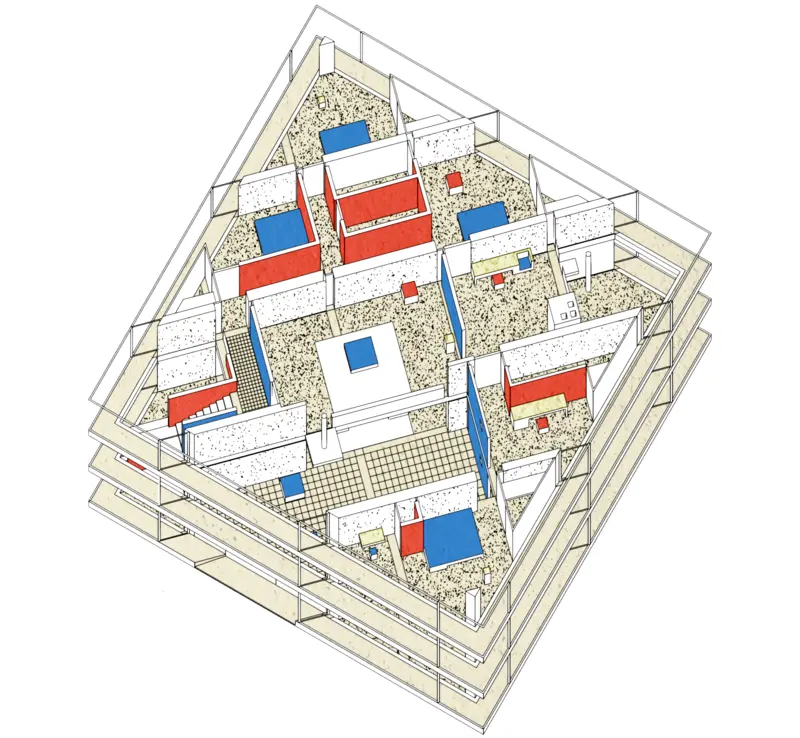

Military 1:2

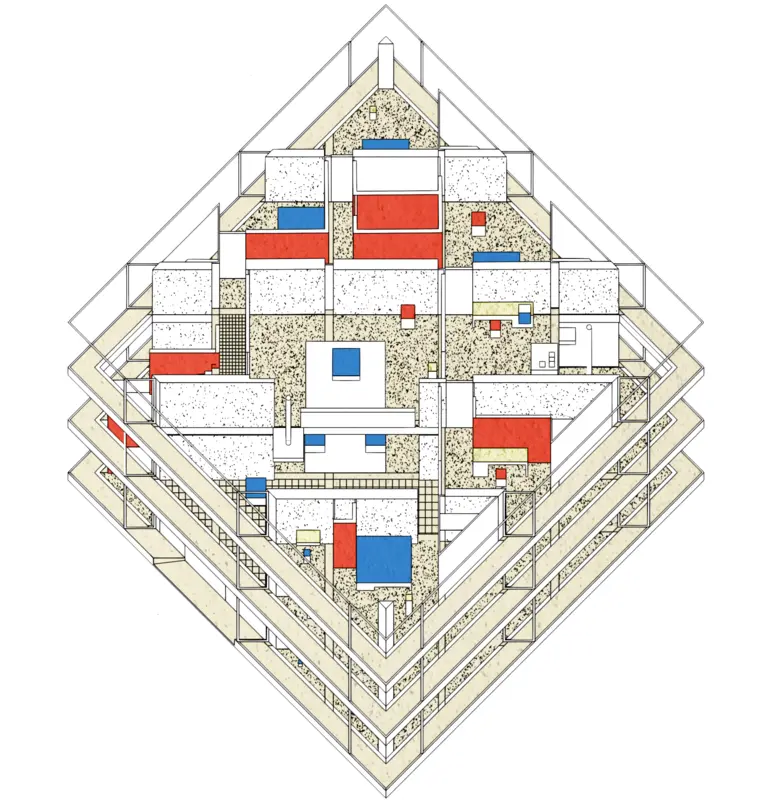

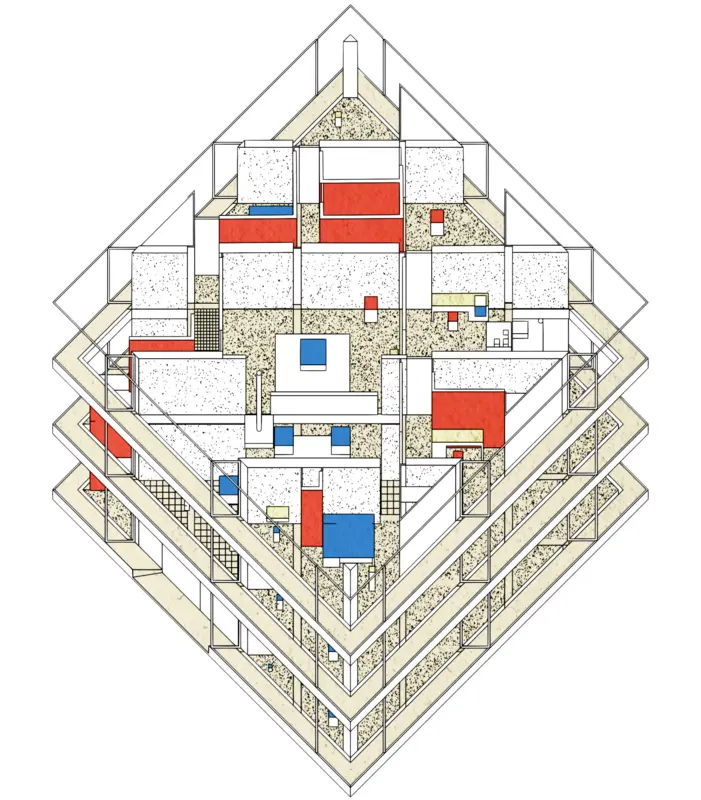

Cavalier 1:1

Cabinet 3:4

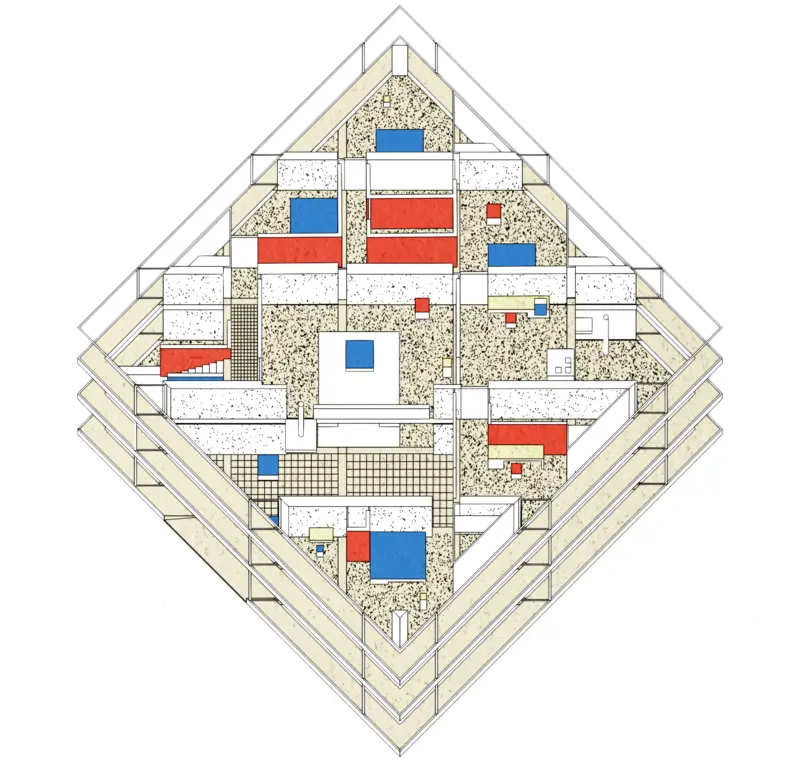

Cabinet 1:2

Axonometry

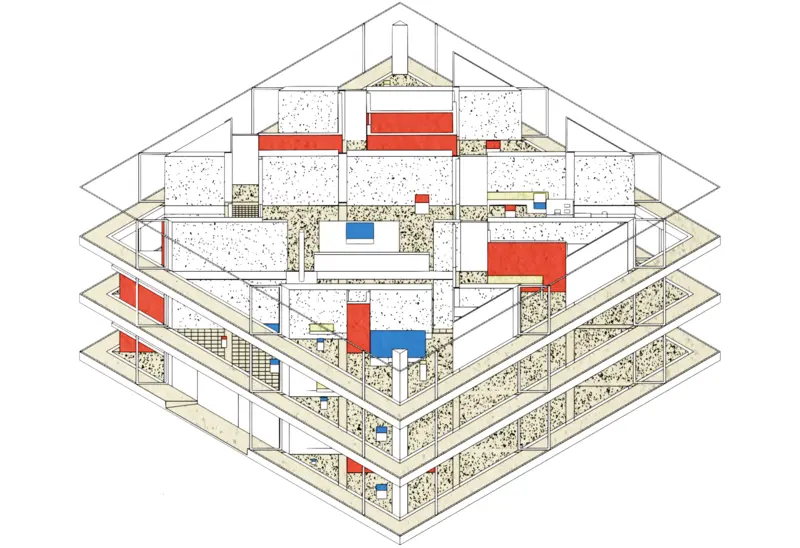

Isometric (30°/30°)

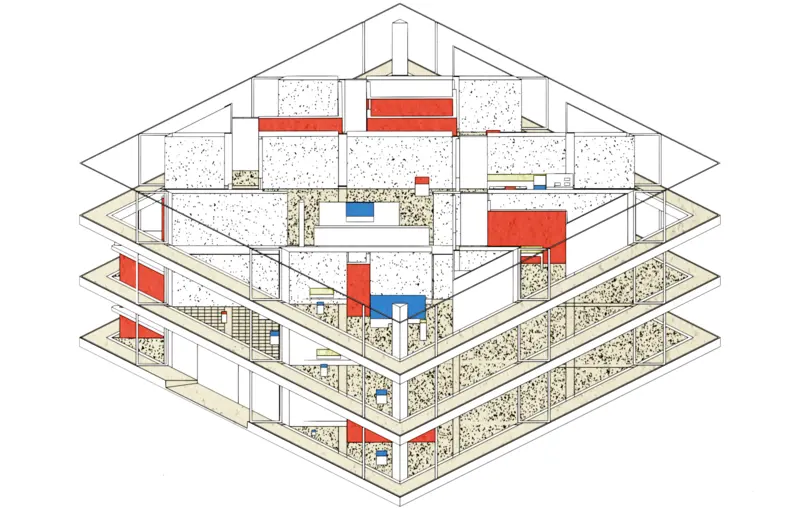

Dimetric Pixel 1:2 (26.56°/26.56°)

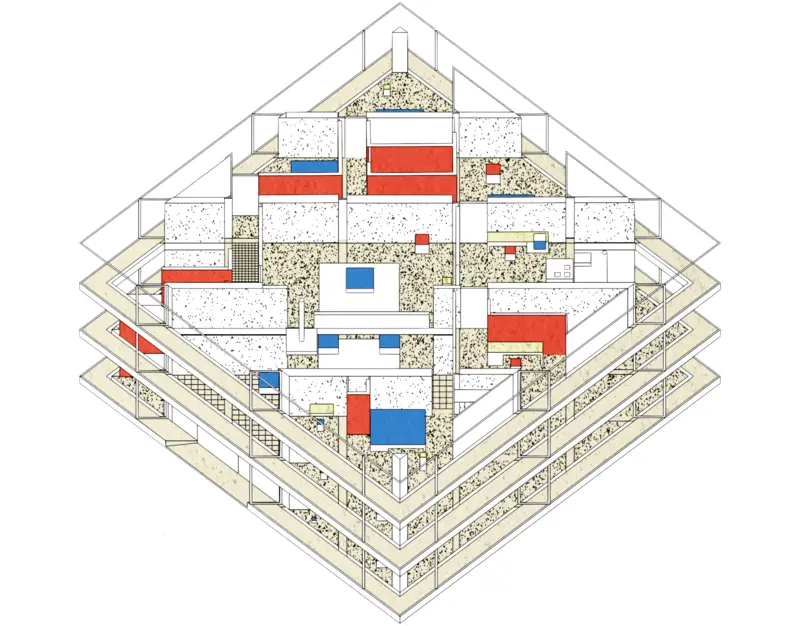

Dimetric Pixel 3:4 (36.87°/36.87°)

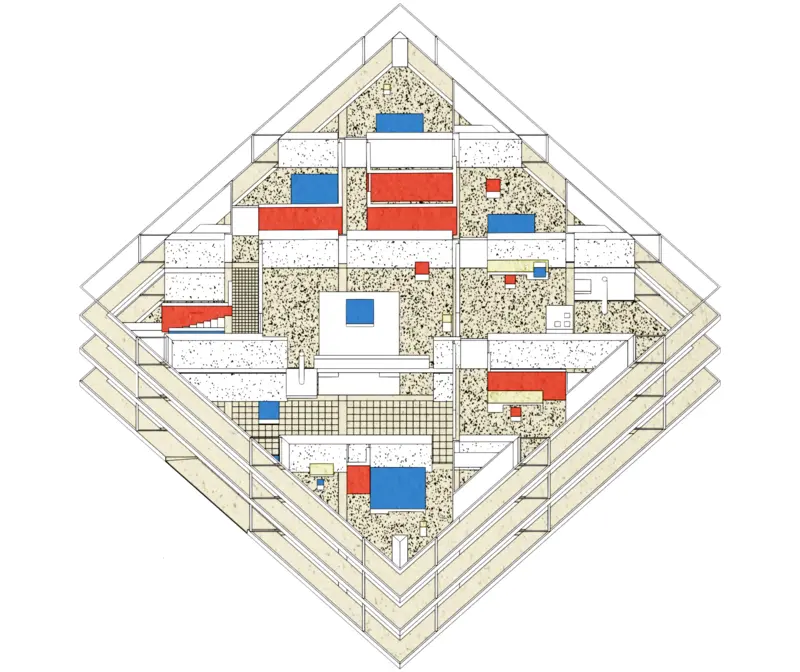

Dimetric (41.5°/41.5°)

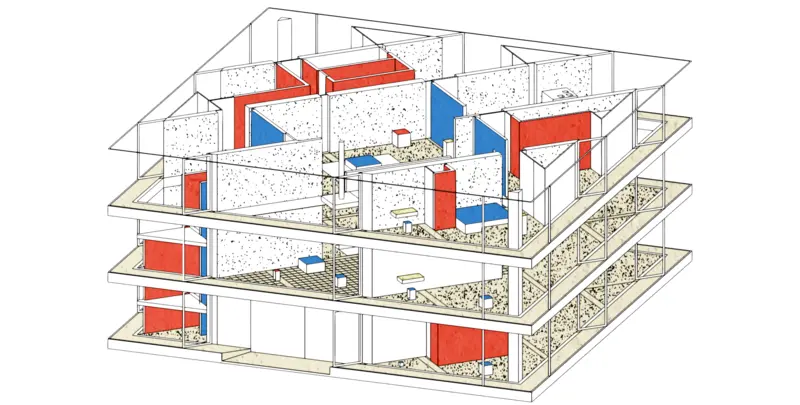

Dimetric Engineering (41.4°/7.2°)

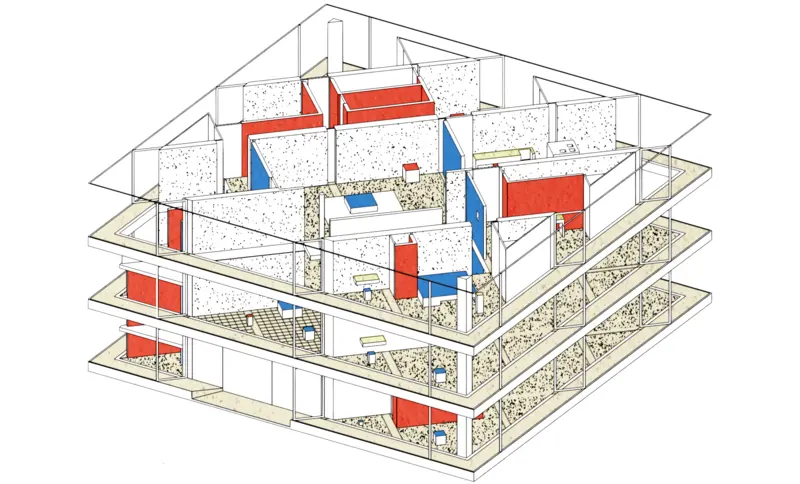

Dimetric (37°/16°)

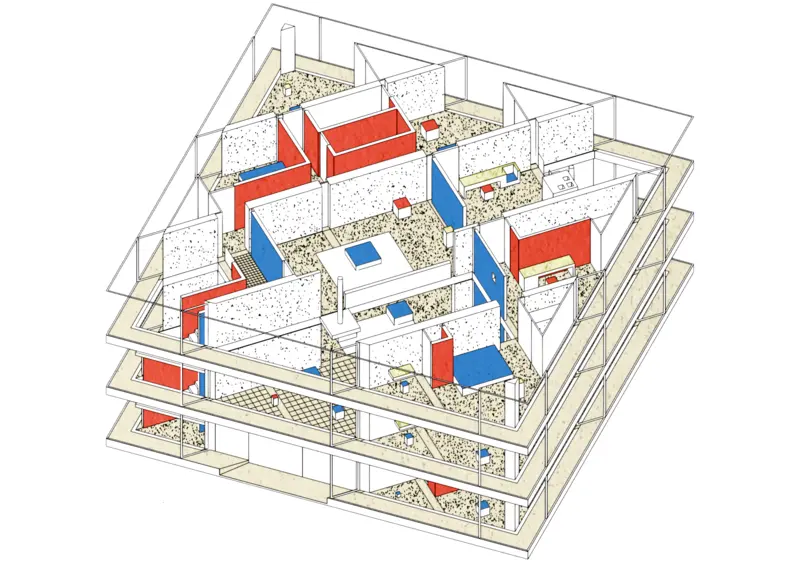

Dimetric (60°/15°)

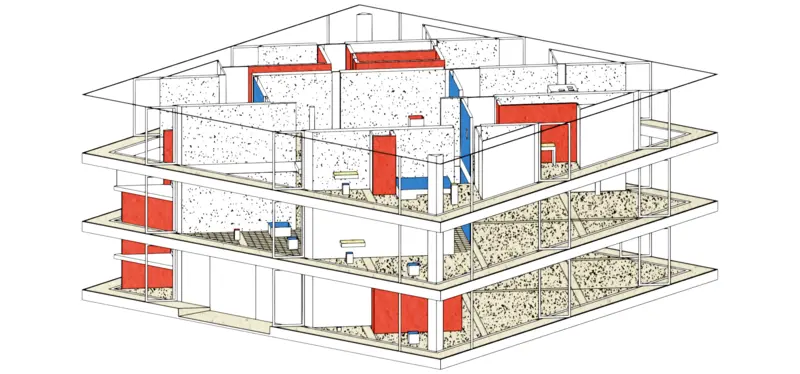

Trimetric (18°/11°)

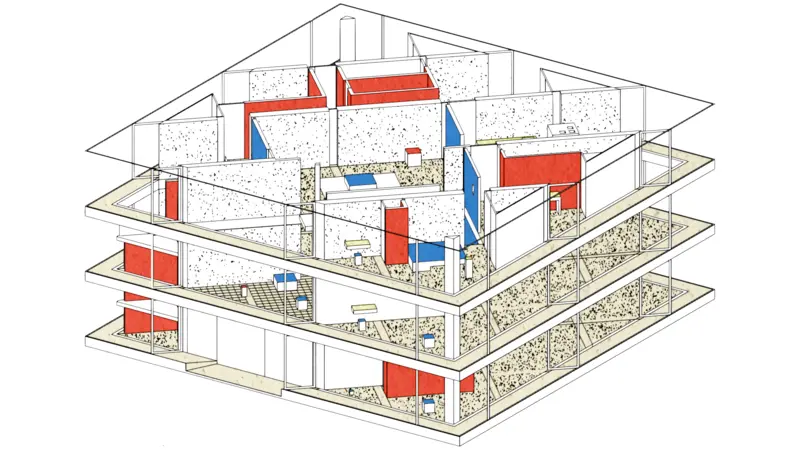

Trimetric (30°/15°)

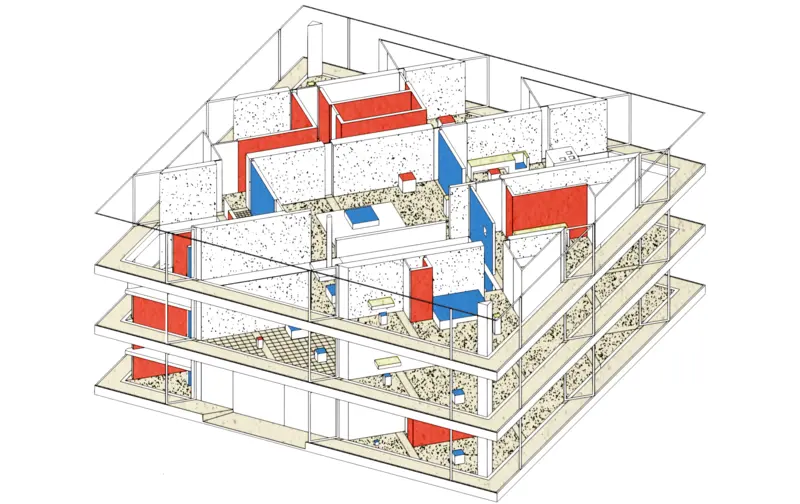

Trimetric (45°/15°)

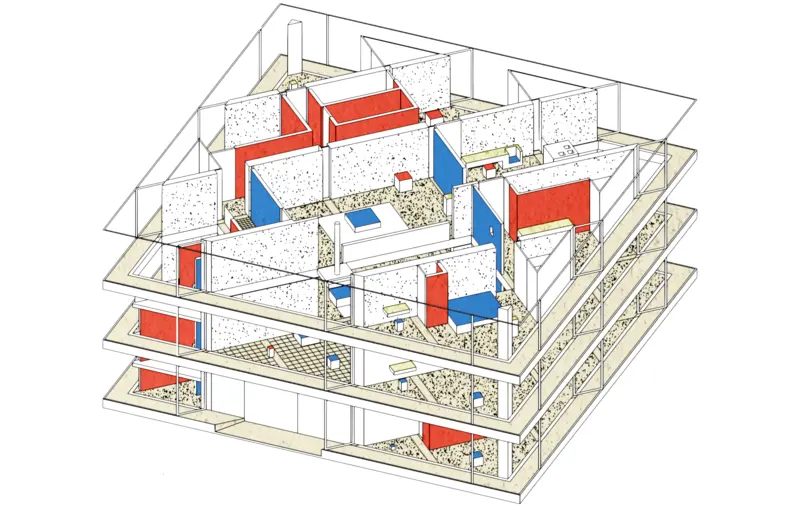

Trimetric (52°/13°)

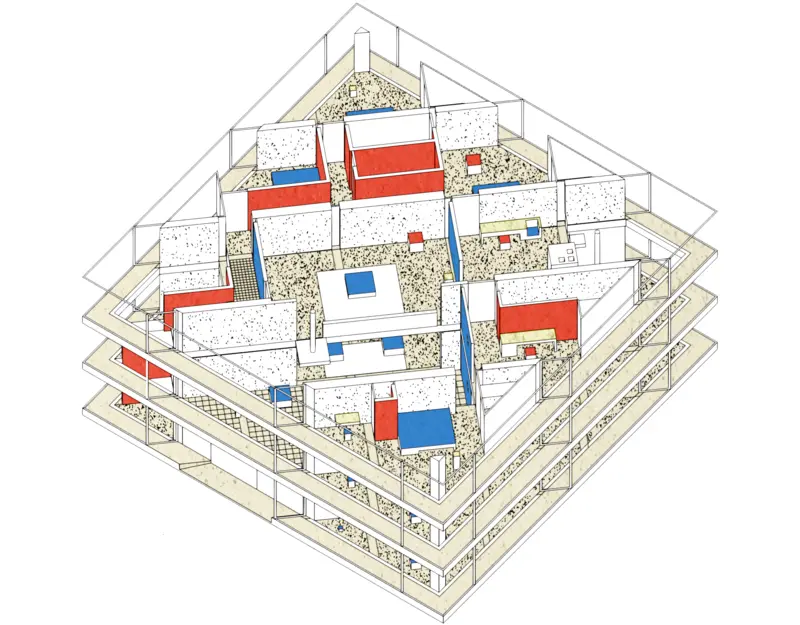

Trimetric (45°/30°)
